Spare yourself the backbreaking work of unloading rock, gravel, firewood, sand, trash, mulch, dirt, yard waste, equipment, hay bales, feed bags, manure, roofing shingles, furniture or anything else you may haul in your pickup. Finish jobs faster with LOADHANDLER®.
Fits all Mid-Size, Compact and all Step-Sides.
NEW 2200 lb. unloading capacity.
- Roller bar: 60"
- Dragsheet: 42" wide x 15' long
- Unit weight: 19 lbs.
- Capacity: 2200 lbs.
- 12-Month Limited Warranty
- Shipping Carton: 23" x 11" x 5"
- Shipping Weight: 19 lbs.
Padded brackets and tie down straps secure the LOADHANDLER® to any tailgate. Installs or removes in about a minute. The LOADHANDLER® unloads your cargo in as little as 30 seconds.

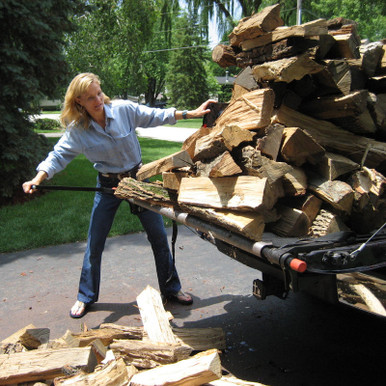

The LOADHANDLER® consists of a heavy gauge poly fabric rolled onto a steel bar that runs the length of the tailgate. To load, just unroll the dragsheet to cover your truck bed. To unload, lower the tailgate, insert the crank handle into the end of the roller bar and rewind the dragsheet.
IMPORTANT: If your pickup bed is rusty, or has a non-slip spray-in liner, you must have a Loadhandler Doubl-Mat (or similar slip-liner) in order to use the Loadhandler. If your pickup bed is in good shape or you have a plastic liner, you do not need a slip-liner.
Please refer to the charts below for sizing and capacity information to determine which of our Loadhandler products best suits your needs.
|MODEL||VEHICLE APPLICATION||EXCEPTIONS & COMMENTS|
|LH2200||Universal Full-Size Standard
Fits all Full-Size pickups (except Step-Sides), including 1/2-ton, 3/4-ton and 1-ton. Fits:
|Best model for 1/2-ton trucks. Also recommended for light-duty on 3/4- and 1-ton trucks.
Does not fit F-150 Super Crew. (Please refer to the LH2200M for 2008 and older F-150 Super Crew.)
|LH2200M||Universal Mid-Size/Compact Standard. Fits:
||Best model for all Mid-Size trucks.
Also best model for all Step-Sides (both Full-Size and Mid-Size/Compact Step-Sides).
|LH3000||Fits all Full-Size pickups (except Step-Sides and Toyota 2006 and older), including 1/2-ton, 3/4-ton and 1-ton. Fits:
||Best model for heavy use on all Full-Size trucks, especially 3/4- and 1-ton trucks.
Fits all Full-Size trucks except Step-Sides, F-150 Super Crew and Toyota T100 & Tundra (2006 and older).
The LH3000 is the most suitable Loadhandler for trailer and flat-bed application, although modification by consumer may be required.
|MODEL||ROLLER BAR||DRAGSHEET (width x length)||UNIT WEIGHT||CAPACITY|
|LH2200||68"||50 inches x 15 feet||21 lbs.||2200 lbs.|
|LH2200M||60"||42 inches x 15 feet||19 lbs.||2200 lbs.|
|LH3000||67"||50 inches x 15 feet||31 lbs.||3000 lbs.|
NOTE: Loadhandler units have adjustable brackets that belt onto the tops of tailgates, so it is the width of the tailgate (left to right, or Driver Side to Passenger Side) that is important in determining which Loadhandler models will fit your truck. Bed length and type of cab are not important in determining which Loadhandler model to purchase.
- Full-Size (fleetside) tailgate widths range from 61" - 67" and accommodate either the LH2200 or LH3000.
- Mid-Size (fleetside) tailgate widths range from 52" - 57" and accommodate the LH2200M.
- Step-Side (non-fleetside) tailgate widths range 44" - 52" and accommodate only the LH2200M. Includes both Full-Size and Mid-Size step-sides (and the F-150 Super Crew which has a tapered tailgate of 52"). For Mid-Size step-sides (Ford Ranger, Chevy S-10, etc.), dragsheets need to be trimmed 4"-5" inches in order to fit the narrow tailgates.
